Product Overview
TRANSMITTANCE, ALLOY, T3, LED230K,

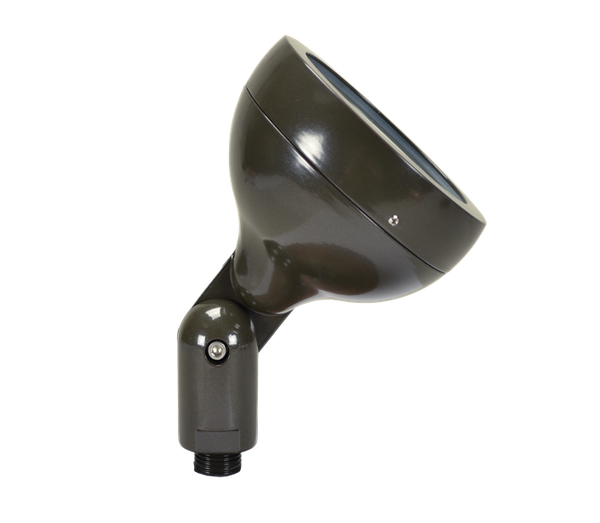

The Transmittance® fixture is designed to illuminate shrubs, trees, signage, architectural facades and more. Features include, Marine grade A360 alloy construction, Proprietary E-Shield™ process provides 5 distinct layers of protection against corrosion, 15’ hub-ready wire lead, 1' FLEX GOLD™ Auxiliary Lead, Composite stake with molded brass threaded insert. Accepts Unique’s FLEX GOLD™ Series LED MR16 lamps or halogen lamps. Pre-Lamped now available!
| Body | Precision high-pressure diecast and machined from Marine grade A360 alloy. Body design provides enclosed, water resistant wire way to protect wires. Features an integral knuckle for maximum mechanical strength. |
| Gasket | High-temperature silicone o-ring for the water-tight seal. |
| Knuckle | Machined knuckle with a solid stainless steel Allen bolt. Vertical tilt for easy aiming. |
| Shroud | Precision machined and comes with a factory sealed shock resistant glass lens to prevent water intrusion. Accepts up to one additional lens/hex cell accessory. |
| Finish | Proprietary E-Shield™ process provides 5 distinct layers of protection against corrosion. |
| Lens | Flat frosted tempered glass. Patented removable lens. The full gasket lens is held in place with a threaded lens retainer. |
| Lamp | For use with FLEX GOLD™ Series LED lamps are available in 1W or 2W T3 lamps. LED lamps are available in 3000K color temperatures. Xelogen lamp up to 20W. |
| Electrical Requirements | A remote 12V transformer is required and may be ordered separately from Unique Lighting Systems®. Voltage range for 12V halogen lamps is 10.8V to 12V. Voltage range for FLEX GOLD™ Series LED T3 lamps is 10V-15V. |
| Lamp Connection | Specification grade, nickel lamp holder. GU5.3 base. |
| Wiring | 15’ 18/2 wire lead and 1′ FLEX™ Auxiliary lead. Pre-stripped Hub-ready leads for quick installation. |
| Mounting Stake | Composite stake with molded brass threaded insert. |
Warranty Information
Manufacturer's Warranty
