Product Overview

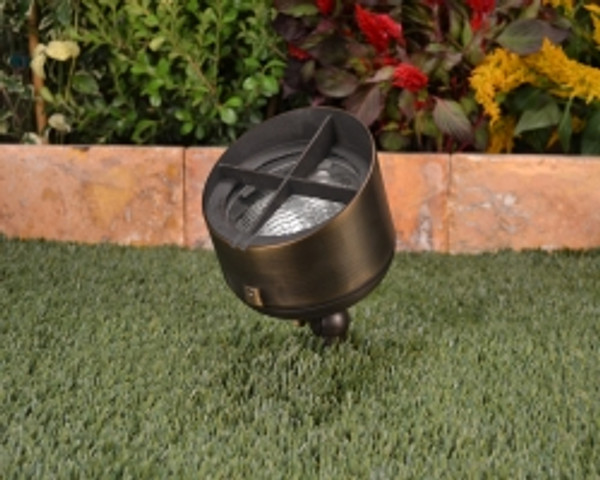

A powerful directional up-light, the Big Bang is perfect when illuminating trees, tall structures and vast spaces. The dual gasket design secures lamp and lens in place, while the Die Cast Brass lock and load body and lens retainer make installation fast and easy.
Body
Precision machined from solid brass casting. Body design provides enclosed, water resistant wireway to protect wires. Features an integral knuckle for maximum mechanical strength.
Gasket
High temperature silicone o-ring for water-tight seal.
Knuckle.
Machined brass knuckle with a solid brass adjustable thumb screw. Vertical tilt of 270° and horizontal rotation of 360° for easy aiming. The Orbital Lock Nut™ allows for locking the horizontal rotation without adjusting the stake.
Shroud
Precision machined and comes with a factory sealed shock resistant tempered glass lens to prevent water intrusion. Accepts up to one additional lens/hex cell accessory.
Lens
Comes with a complete set of optical designer lenses including: spread lens, frosted, hex cell.
Lamp
For use with a halogen lamp up to 35W PAR36 lamp. FLEX™ Series LED lamps are available in 6W and 10W PAR36 lamps. LED lamps are available in 2700K and 3000K color temperatures.
Electrical Requirements
A remote 12V or 24V transformer required, may be ordered separately from Unique Lighting Systems®. Voltage range for 12V halogen lamps is 10.8V to 12V. Voltage range for 24V halogen lamps is 21.6V to 24V. Voltage range for FLEX™ Series LED PAR36 lamps is 10V-15V.
Lamp Connection
PAR 36: Screw terminal.
Wiring
Exclusive UF Intelli-Flex wire with anti-moisture migration connections.
Mounting Stake
Standard mounting stake is injection molded PVC with a ½” NPS threaded female fitting.
Finish
Exclusive Weathered Brass finish is standard. Unique™ Lightings’ Weathered Brass finish is a “living finish” and will naturally patina and change over time. Polyester powder coat finishes are also available.
Warranty
The Odyssey Family of products from Unique Lighting Systems® carries a Limited Lifetime Warranty against manufacturer’s defects.
Manufacturing
Manufactured to ISO 9001-2008 Quality Systems Standard.
